Garden Sprayers

Garden Sprayers

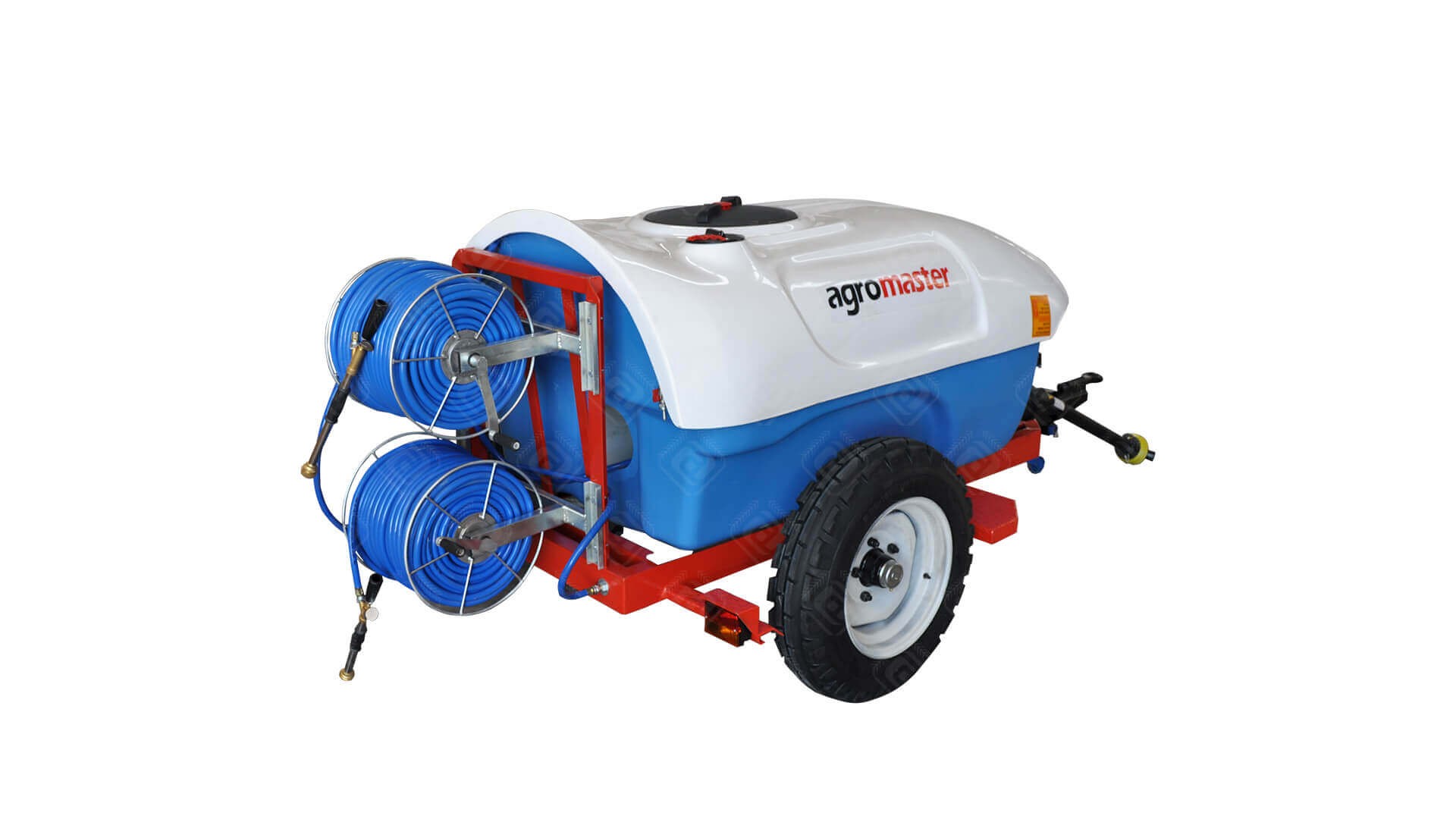

Garden Sprayer Trailed Type-B1000

PDF

Download

TECHNICAL SPECIFICATIONS

Technical Specifications* Unit B 1000 B 1600 B 2000
Capacity  L 1000 1600 2000
Gallon 264 422 528
Total Width (W) mm 2650 2650 2650
mm 8'8" 8'8" 8'8"
Total Lenght (L) mm 2950 2950 3700
ft.in. 9'8" 9'8" 12'2"
Length Without Drawbar (L1) mm 1950 1950 2300
ft.in. 6'5" 6'5" 7'7"
Total Height (H) mm 1350 1350 1350
ft.in 4'5" 4'5" 4'5"
Pump Type   Membrane
Hose Length m 25
ft 82'
Number of Regulator Outlet pcs 3-7
Pressure Safety Valve   Standart
Tank Mixer   Standart
Tank Material   Fiberglass / polyethylene
Tyre Size   600/16, 750/16
PTO Rotation rpm 540
Required Power hp 45-70 45-70 45-70
Total Weight (Without Hose) kg 325 375 405
Ibs 716 826 892
