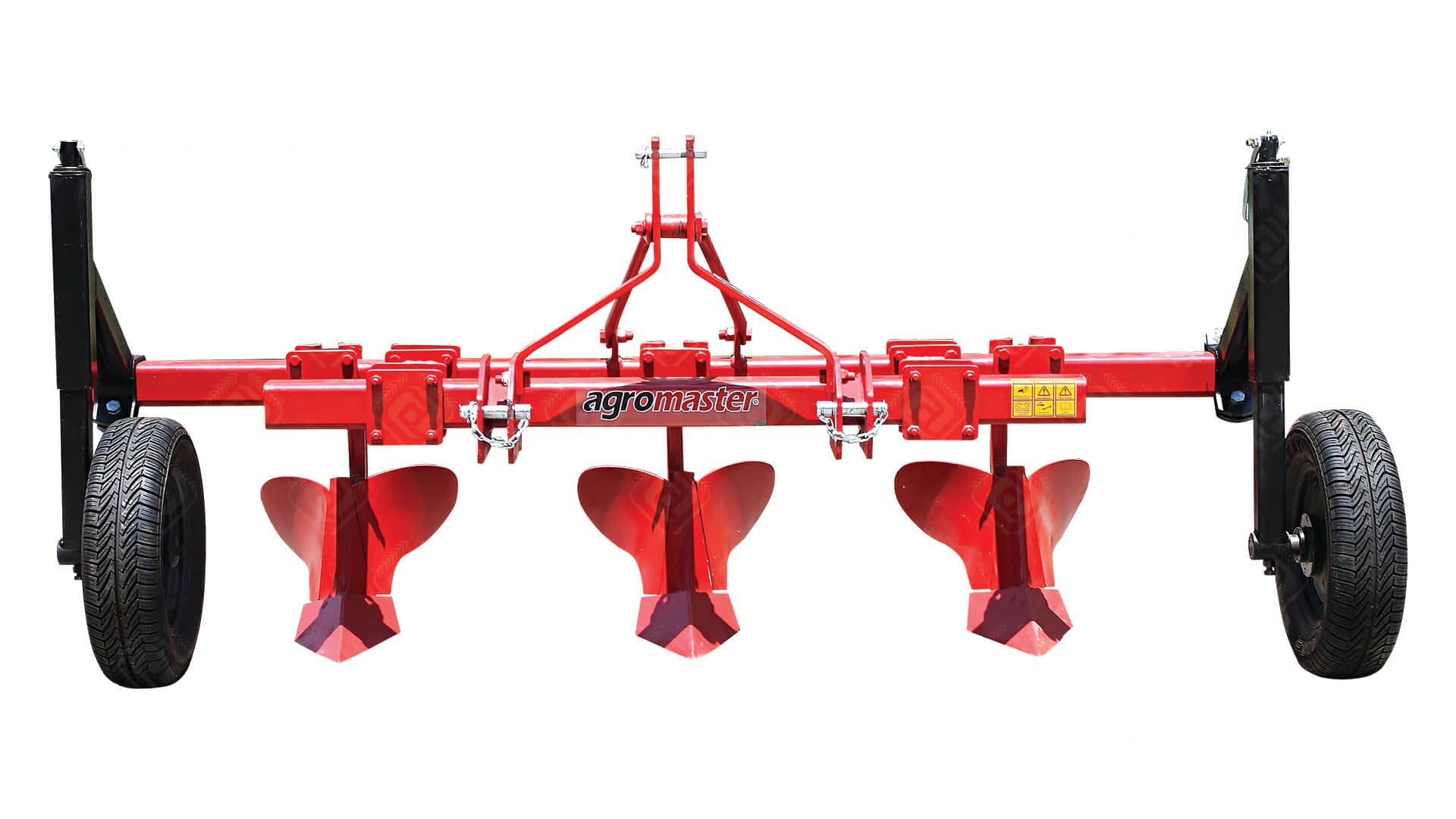

Profile Frame Ridger-MRT

The primary soil tillage machine is mounted from tractor’s hydraulic lifting unit and universal three point linkage system. Therefore transportation to the field can be easily done.Furrow opener is placed over adjustable profile chassis and also it is manufactured as with or without wheel. It has an opportunity to enter between rows as demanded width due to its adjustable moldboards.The usage aim of the machine is to open furrows between rows and ridging for row-planted seeds such as; corn,sunflower,cotton,etc.

PDF

Download

TECHNICAL SPECIFICATIONS



Technical Specifications* Unit MRT 3  MRT 4 MRT 5
Number of The Disc pcs 3 4 5
Total Width (W) mm 2100 2900 3700
ft.in. 6'11" 9'6" 12'2"
Total Length (L) mm 1000 1000 1000
ft.in  3'3" 3'3" 3'3"
Total Height (H) mm 1750 1750 1750
ft.in 5'9" 5'9" 5'9"
Distance Betweeen Furrows mm 700-900 700-900 700-900
ft.in 2'4"-2'11" 2'4"-2'11" 2'4"-2'11"
Bottom Width of The Canal mm 250 250 250
ft.in 10" 10" 10"
Canal Depth mm 200-350 200-350 200-350
ft.in. 8"-14" 8"-14" 8"-14"
Canal Width mm 300-340-360 300-340-360 300-340-360
ft.in. 12"-13"-14 12"-13"-14 12"-13"-14
Dept Wheels mm OPTIONAL
ft.in.
Required Power hp 50-60 65-75 80-90
Weight kg 450 520 620
Ibs 992 1146 1366
